Chapter 4b.  Survey of Apochromats (Triplet Systems).

Triplets form the mainstay of present day apochromatic designs.  This is because by adding a third element it becomes much easier to manufacture high-performance lenses cost-effectively; and more combinations of glasses are available to do the job.  Yet even here there are limits as one pushes for faster and faster focal ratios.  If diffraction limited performance and exquisite color correction are demanded at f/7 for a 150mm lens, then it may be necessary to add a fourth element.  Or a radical departure from the closely spaced lens arrangements which we have seen so far may also be contemplated.  The Petzval lens in which there are two widely separated doublets may prove helpful (cf. Chapter 5).  Of the rich variety possible in three-element lens combinations, we will survey a sampling in the present chapter.

Harold Dennis Taylor developed and patented the first practical triplet in 1892 [British Patent no. 17994; cf. S. Czapski & O. Eppenstein, Grundzü ge der Theorie der optischen Instrumente nach Abbe, 3rd ed. (Verlag J.A. Barth, 1924), p. 567; H. Chrétien, Calcul des combinaisons optiques , 4th ed. (Paris, 1958), pp. 261-267; and G.R. Nankivell, "The Cooke Photovisual Objective and the 22.9cm Refractor at the Carter Observatory, New Zealand," Journal of the Antique Telescope Society 24 (2002), pp. 4-8].  He seems to have been alerted to the possibility of making a triplet through the published writings of Abbe and Hastings [cf. H.D. Taylor, Adjustment and Testing of Telescope Objectives , 5th ed. (Adam Hilger, 1983), pp. 78-87, especially p. 79; and C.S Hastings, "On Triple Objectives with complete Color Correction," The American Journal of Science and Arts, 3rd series, vol. 18 (1879), pp. 429-435].  In 1894, Taylor published a detailed description of his triplet, specifying the glass types, their order in the construction, and the relationships of their surface curves.  He also illustrated his lens with a layout [cf. H.D. Taylor, "Description of a Perfectly Achromatic Refractor," Monthly Notices of the Royal Astronomical Society 54.5  (1894), pp. 328-337; reprinted in Adjustment and Testing , pp. 78-87, especially pp. 82-83].

The glass types in question were all "ordentlich" or "regular" types produced at the time by Schott.  Facing the sky came a light barium flint (O.543); in the middle a borosilicate "short flint" (O.164); and on bottom a light silicate crown (O.374).  O.164 was a replacement for O.658, an earlier borosilicate short-flint which Taylor had specified in his patent.  O.164 allowed somewhat better correction than O.658.  Henri Chrétien, the French optical designer, studied Taylor's objective and has left an interesting discussion about it [cf. Chrétien, p. 262ff.; cf. also H. Hovestadt, Jena Glass and its Scientific and Industrial Applications (London,1902), pp. 134-137].  James R. Lynch has fitted the indices from the 1902 Schott catalog to Buchdahl's 5-term dispersion formula.  Using Lynch's results and Taylor's illustration and description, we can form a convincing approximation of Taylor's second form of objective (employing O.164) in ZEMAX.  This allows a direct comparison with the layout specified in Taylor's article.

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
1069.14
15
O.543
160
0
2
Standard
-371.47
0.1

160
0
3
Standard
-371.47
3
O.164
160
0
4
Standard
279.24
3.167

160
0
5
Standard
279.24
15
O.374
160
0
6
Standard
8325.07
2683.23

160
0
7
Standard
Infinity
0.230

47.162
0
Standard
-914.04


47.156
0

Table 1:  150mm f/18 Cooke-Type "Photo-visual" Triplet

Next comes the layout:

Taylor Triplet
1. 150mm f/18 Cooke-Type "Photo-visual" Triplet


The thinness of the convex central element is intentional, since Taylor's illustrations as well as surviving Photo-visuals show that he purposely employed thin glass [cf. Taylor, Monthly Notices, p. 332; Adjustment and Testing , p. 82; and Nankivell, pp. 4-8].  The ray fan plots and spots come next.  Since this and all subsequent designs are aplanatic, I do not give ran fan plots for the off-axis images:

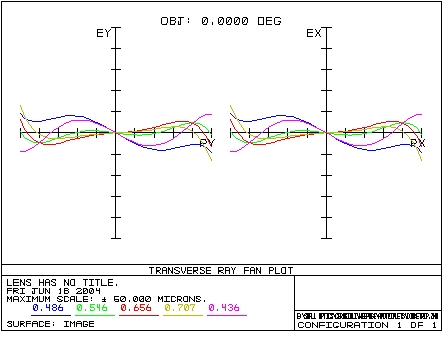

Cooke Photo-visual Ray Fan Plot
Figure 1:  Axial Ray Fan Plot for a 150mm f/18 Cooke-Type "Photo-visual" Triplet

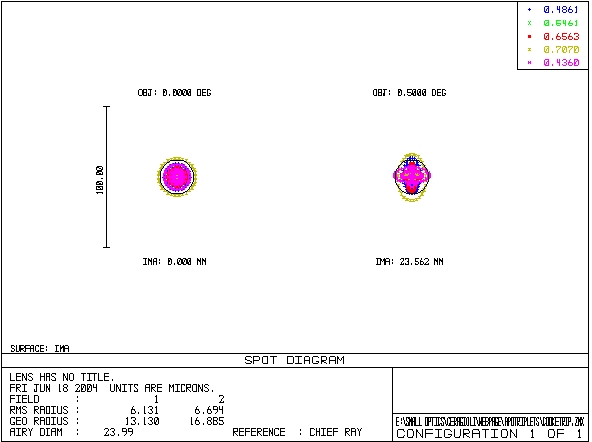

Cooke Photo-Visual Spots

Figure 2:  Spot diagrams for a 150mm f/18 Cooke-Type "Photo-visual" Triplet

Optically, the design is excellent for a lens not employing fluorite or fluor-crown.  Notice the enlarged airgap between the second and third elements, meant to suppress spherochromatism.  The residual 5th order spherical aberration in not important at the present focal ratio, but would need to be removed through aspherizing if the lens were built at a faster speed.

Cooke and Sons began selling Taylor's Photo-visuals by the mid-1890s, and Taylor himself presented the design in April 1894 to the Royal Astronomical Society [cf. Observatory 213 (April, 1894), pp.132-134].  Two of the largest lenses were constructed almost immediately:  a 9-inch in 1896 for Edward Crossley, a wealthy English amateur, and a 12.5-inch at about the same time for Cambridge University [cf. Nankivell, p. 5; and D.W. Dewhirst, "A Cooke Photovisual Lens in a Compensated Cell," Sky and Telescope 49.1 (1975), pp. 24-25].  They also made a number of other Photo-visuals by 1905 [cf. W.J.S. Lockyer, "Note on the Permanency of some Photo-visual Lenses," Monthly Notices of the Royal Astronomical Society 68 (1908), pp. 19-29].

Unfortunately, all these lenses began to degrade soon after completion.  Indeed, Sir Howard Grubb and A.C. Ranyard had both expressed concern regarding the permanency of their glasses at the April 1894 meeting.  But Taylor and his employers defended the lenses and expected no decay [cf. Observatory 213 (April, 1894), pp. 147-148].  Yet by 1908 there was ample evidence of glass degradation [cf. Lockyer, "Note on the Permanency..," pp. 19-29].  Ironically, whereas Taylor had most been at pains to allay concerns about the permanency of the borosilicate short-flint, it was the inner surface of the light silicate crown at the rear of the lens which was most affected, and to a lesser extent the inner surface of the front light barium flint [cf. Taylor, Monthly Notices, pp. 333-334; Adjustment and Testing , pp. 83-84; and Lockyer, "Note on the Permanency..," pp. 22ff.].  Yet the middle short-flint also decayed with the passage of time; and like many other short-flint glasses, if actual droplets of water ever sat on its surface for a length of time, deep corrosion ensued.  Recently, the 9-inch Crossley lens was destroyed in this way after 100 years of service [cf. Nankivell, pp. 6-7].  It is a danger facing many short-flint apochromats.  Even if nothing catastrophic occurred, owners of the early Cooke lenses could expect them to need repolishing every 25 years or so [cf. Dewhirst, p. 25].

The optical success of Taylor's lens spurred Cooke and Sons to search for more stable glasses.  They had already replaced O.658 with O.164.  Next they replaced the ordinary crown O.374 with O.599 [cf. Taylor's reply to Lockyer in Lockyer, p. 29].  Schott too recognized the problem and by 1902 had removed O.374 from the market [cf. H. Hovestadt, Jena Glass and its Scientific and Industrial Applications (McMillan, 1902), pp. 388-393].  For its part, Zeiss recognized the value of Taylor's design and quickly marketed their own similar triplet, called the "B" objective, designed by Albert König [cf. A. Sonnefeld, "Der Köngische Apochromat B," Zeitschrift für Instrumentenkunde 61 (1941), pp. 261-264; R. Riekher, Fernrohre und ihre Meister , 2nd. ed. (Verlag Technik, 1990), p. 214].  Since Zeiss had such close ties to Schott, they were apparently able from the outset to choose better, more stable glasses than Taylor had used.  Even so, old Zeiss B lenses can show fungal growths [Wolfgang Busch per email communication and photographs a) and b) ].

König's student, Horst Köhler, has indicated the modern Schott glass types and geometry of the "B" objective, as well as radii of curvature and spacings for a small version.  From this information it is possible to produce an approximation of the B at 150mm f/18, in order to show how the lens would compare to Taylor's [cf. A. König and H. Köhler, Fernrohre und Entfernungsmesser , 3rd ed. (Springer Verlag, 1959), p.134, nr. 9]:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
683.456
18
BaLF4
160
0
2
Standard
-276.868
0.1

160
0
3
Standard
-276.284
7
KzF2
160
0
4
Standard
188.838
7.258

160
0
5
Standard
195.389
18
K7
160
0
6
Standard 1006.367
2666.608

160
0
7
Standard
Infinity
-0.074

47.138
0
Standard
-683.119


47.139
0

Table 2:  150mm f/18 "Zeiss B"-Type Triplet

The layout looks like so::

Zeiss Type B Layout
2. 150mm f/18
"Zeiss B"-Type Triplet

The ray fan plots and spot diagrams come next:

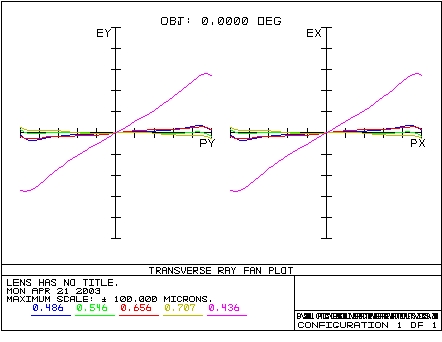

Ray Fan Diagram for Zeiss Type B
Figure 3:  Axial Ray Fan Plots for 150mm f/18 "Zeiss B"-Type Triplet


Zeiss B-Type Spots

Figure 4:  Spot Diagrams for 150mm f/18 "Zeiss B"-Type Triplet

The color correction is not quite as good as in Taylor's objective, even apart from the performance at 0.436 micron.  On the other hand, the "Zeiss B"-type has almost no spherochromatism, and only a small amount of zonal spherical aberration, which itself could be removed with suitable aspheric figuring in the outer zones.  Therefore, the lens could be built at a faster focal ratio, f/15 being the target at which Zeiss aimed.  Incidentally, this is one of the few apochromatic designs which actually fulfills Abbe's criteria for a true apochromat as discussed in the last chapter.

The main problem with the "B" and the Cooke "Photo-visual" objectives--in addition to possible glass deterioration--is the strongly curved interior surfaces and the large airgap between the middle short-flint element and the final crown.  These features made the lenses very sensitive to errors in the tilt and centration of the elements relative to one another, as well as to temperature changes.  Even small alignment errors would produce strong coma in the image.  Taylor and Zeiss recognized this and made provision for it in the design of their lens cells, introducing carefully made spacers and retaining rings which expanded and contracted with temperature in such a way as to keep the lens elements properly oriented with respect to one another [cf. Taylor, "The Cooke Photo-Visual Objective," in The Adjustment and Testing of Telescope Objectives, 5th ed. (Adam Hilger, 1983), pp. 54-57, especially p. 55; Sonnefeld, pp. 262-263; J.G. Baker, "Planetary Telescopes," Applied Optics 2.2 (1963), pp. 111-129, especially  p. 118; and Dewhirst, pp. 24-25].  August Sonnefeld, the designer of the Zeiss AS objective, in his discussion of the B-type said that "One must...expect from the user that he value the B-objective like a highly sensitive physical measuring instrument...and treat it accordingly."

Nevertheless, Zeiss occassionally produced this objective type at a much faster focal ratio.  Michael Kiessling in Germany owns a 130mm f/8.5 [cf. www.achromat.de/html/frameset_tele.html; Carl Zeiss; B130/1110], made in the 1920s for terrestrial observation.  This objective contains a two-part cell housing in the front sub-cell the first two glass elements, and in the rear sub-cell the separated third element.  The two sub-cells can be fully adusted relative to one another, and then the lens cell as a whole can be adjusted with respect to the tube.  Kiessling reports that the objective when used on the sky produces very good images with little outstanding color.  And I myself, having recently tested the objective (while on a visit to Germany) in autocollimation using both a Ronchi and a knife-edge test, can corroborate the goodness of the color correction and figure.  The objective gave surprisingly good performance!

Now, the reason for the steep curves in these triplets is because the dispersions of the glasses do not differ sufficiently from one another.  We saw the same problem in Chapter 4a especially in regard to the "Zeiss A"-type and the SSKN8/KzFSN4 doublets.  In part to overcome this problem, Zeiss later developed the "F" or "dense flint" objective.  This became possible during the middle of the 20th century with the advent of extra dense flint glasses which displayed abnormal dispersions.  One such abnormal dispersion flint is called SF11.  The "SF" abbreviation stands for "Schwerflint," that is, "dense flint" in German.

SF11 can be combined with another dense flint such as SF1, SF4, SF9, etc. and a dense phosphate crown of much lower dispersion, such as PSK3 or one of the "BaK" or "SK" barium crowns.  Zeiss's "F" objective contained the glasses PSK3, SF4, and SF11, according to H. Köhler who developed it along with R. Conradi [cf. König and Köhler, p. 61; p. 135, nr. 12; and p. 139].  We can form an approximation of the "F" at 150mm and f/15 as follows:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
14223
16
PSK3
160
0
2
Standard
-461.190
0.1

160
0
3
Standard
-461.190
10
SF4
160
0
4
Standard
302.368
0.914

160
0
5
Standard
305.400
18
SF11
160
0
6
Standard -1032.53
2267.513

160
0
7
Standard
Infinity
-.085

39.356
0
Standard
-830.316


39.372
0

Table 3:  150mm f/15 "Zeiss F"-Type Triplet

The layout looks like so::

Zeiss F Objective
3. 150mm f/15
"Zeiss F"-Type Triplet

Clearly the interior curves are much weaker than in the "B" objective and the airgap between the middle and rear elements is far smaller.  Its performance at f/15 is good, though not excellent:

Zeiss F Ray Fan
Figure 5:  Ray Fan Plots for 150mm f/15 "Zeiss F"-type Triplet


Zeiss F-Type Spots

Figure 6:  Spot Diagrams for 150mm f/15 "Zeiss F"-Type Triplet

Although the color correction seen here is not as good as in a Taylor or "Zeiss B"-type of apochromat, it is still respectable in comparison to an achromat.  Since the interior curves of the "F" are weaker than those of a Taylor or Zeiss B, it is possible to build the system even faster, as Zeiss did, producing the "F" as a half-apochromat down to about f/11 [cf. König and Köhler, p. 61; p. 135, nr. 12; and p. 139].  Other combinations of dense flints and crowns can give better color correction, but the present set has the advantage of significantly weakening the curves, which eases fabrication, mounting, and sensitivity to tilts and decenters of the elements [cf. Baker, p. 119 on the possibility of a superachromatic dense flint triplet].

The next step forward in the design of practical apochromatic triplets for amateur astronomy came when it was realized that although cementing large lens elements was not possible, filling the gaps between them with a very thin layer of oil (or special index matching gel), and sealing the edges of the lens was feasible.  I do not know when this realization occurred.  Certainly, James G. Baker, the famous American optical designer, understood it by 1963, when he suggested building various large half- and full-apochromatic objectives cemented together with "liquid cements...now available" [cf. Baker, p. 125ff.].  Probably the realization occurred to various people independently of one another.

At present, a common method of sealing the edges of oil-spaced lenses is by means of polyimide pressure-senstive tape, which goes by the tradename of "Kapton."  This tape is very effective at sticking to the glass despite the oil, and forms a durable long-term barrier against leakage.  As for spacing oils, many different types can work (including plain cooking oil!), but ideally one would like an oil or gel which matches the index of the glasses involved, is inert, and evaporates very slowly (therefore silicon oil has often been used).  A great number of oil-spaced triplets have been manufactured since the 1970s and I personally know of lenses over 20 years old which show no leakage of oil or deterioration.  So oil-spacing can be considered a permanent or at least long term solution.  If the oil layer ever becomes dirty or damaged in some way, it is possible to separate the lens elements, renew the oil, and retape the lens without harm to the glass.

The first person I know of who introduced an "oil-immersion" type of apochromat to amateur astronomy was Wolfgang Busch, who independently invented the procedure of oiling (1).  In 1977 he published an important article in the German popular astronomy magazine Sterne und Weltraum ["Stars and Space":  for the article, cf. 1) & 2) ; for an English translation, cf. 3) ].  In it he described how to make a short-flint triplet easily from prefabricated sets of lens blanks which he in conjunction with H. Reichmann Precision Optics of Brokdorf, Germany, were selling as kits [cf. W. Busch, "Herstellen eines fast apochromatischen Fernrohr-Objectivs aus vorgefertigten Teilen," in the "Tips für die Astropraxis" department of Sterne und Weltraum 16 (1977), pp. 338-341; also cf. "20 Jahre Kompaktobjektive mit Ölfügung," parts 1 & 2, in Sternkieker (nos. 1 & 2, 1995), pp. 18-19; 77-78].  Accompanying the article was an advertisement from the Reichmann company offering kits for two apertures, 130mm and 150mm both at about f/15.  Since Busch's work has been so little known in the English speaking world, in what follows I offer more extended coverage of it than of other, better known designers or lens types.

Busch considered his design to be an improved type of half-apochromat, though in practice with nearly full apochromatic performance.  His kits and procedures for producing the objectives were ingenious, and it is unfortunate this his contribution to the wide-spread dissemination of apochromatic objectives among amateur astronomers in recent decades has been so little known outside Germany.

Busch's optical design was broadly as follows:  his lens consisted of sandwiching a piece of Schott KzFN2, a slightly abormal-dispersion short-flint, between two pieces of Schott B270, a type of crown glass not normally used in high precision optics, but similar to the ordinary K-type Schott crown glasses.  Such a sandwiching arrangement of one type of glass between two specimens of another glass will be seen later in this chapter (cf. Table 9) when we consider the high performance triplet ED apochromats.  In principle, the color correction and performance of Busch's lens should be similar to the short-flint doublets we saw in Chapter 4a, since the same types of glasses are involved.  But Busch had two cards up his sleeve which altered that performance fundamentally for the better.  The first and most important was the oil-spacing.  By filling the gaps between the glasses with oil, he essentially nullified the interior surfaces' contribution to the lenses' wavefront errors, a feature we have discussed previously.  Then too, the oil film automatically regulates the spacing and tilt between the individual lenses, largely removing the causes of coma in the air-spaced Taylor and Zeiss B objectives.

Busch's second card was to split up, as it were, the crown element of a standard short-flint doublet into two pieces, placing them one in front and one in the rear, and dividing the optical power between them.  By doing so, he could achieve weaker curves on all the lens elements and diminish the monochromatic aberrations associated with strong curves, especially the spherochromatism.  He could also in this way have enough degrees of optical freedom to correct coma, and fully protect his short-flint element from weathering, since it would be sandwiched between two weather-resistent exterior crown elements, and excluded from humidty and chemical attack by the oil layer.  Indeed, Busch left his protype triplet outside in the weather of Hamburg, Germany for two years before exhibiting it at a meeting in Cologne in 1976 [cf. "Herstellen...," p. 338].  The weather-resistence was further enhanced by Busch's choice of glasses, since his short-flint was one of the most chemically stable which Schott made, and the crown glass is nearly inert.

But Busch's great merit is shown in how he developed his design into a lens which could actually be made by an ordinary ATM without any more equipment than is needed to make a Newtonian mirror.  Part of the driving force behind his choice of glasses was the realization that if the difference in the index of refraction from crown to flint was sufficiently small, it would be fully possible to leave all four interior surfaces of the lens combination fine ground, but unpolished .  The oil film would fill in the grinding pits and no reflection would be seen between adjacent interior surfaces.  The fine ground surfaces would look entirely transparent to the naked eye!

To demonstrate this astounding fact, the editors of Sterne und Weltraum magazine displayed on the first page of Busch's article a photograph of a finished objective left with fine-ground interior surfaces.  Below the lens lies a sheet of music, partly covered by the lens and partly left uncovered.  Close observation of the photo shows that the lens has just been oiled and that the oil is still spreading between the elements.  At center the lens appears beautifully transparent where the oil film lies.  But thn comes a larger annulus of glass which the oil has not yet reached.  This area appears fine ground and matte.

Moreover, three years later in 1980, B. Wedel of the Wilhelm Foester Observatory in Berlin published an independent appraisal of a 150mm f/15 Busch objective [cf. "Ein Vergleichstest: "Immersionsobjektiv" von Wolfgang Busch--Zeiss-B Objektiv," Sterne und Weltraum 19 (1980), pp. 422-423].  Wedel noted that everyone's scepticism concerning transparency vanished as soon as the objective was actually seen, and that some experienced planetary observers actually felt that the Busch objective slightly outperformed a 150mm f/15 Zeiss B, brought in to allow direct comparison with an apochromat of known high-performance [cf. also W. Rohr, "Erfahrungen mit einem Immersions-Objektiv HAB 130/1900," Sterne und Weltraum 18 (1979), pp. 313-314].

According to Wedel, comparative photographs of M3 taken through both telescopes showed the same limiting magnitude, although the Busch objective gave a somewhat darker background.  On the other hand, the Zeiss B showed slightly sharper images when the photographs were examined under a microscope.  Despite shining a laser through the Busch objective, Wedel could see no more scatter from the unpolished interior surfaces than from the polished exterior ones.  Whereas, photoelectric measurements demonstrated the theoretically superior color correction of the Zeiss B.  Visual assessment, however, failed to detect any practical difference in performance.

Thus, it was a draw.  Wedel and his observers gave high marks to the Busch objective, comparing it favorably to the Zeiss lens.  Since according to Busch himself, one could build his objectives from the kit for about 1/3 the price of a comparable finished lens, clearly this type of objective represented a very good value to the enterprising ATM.

I can myself corroborate much of this from personal experience, having built and used three Busch objectives.  The oil films render them completely transparent.  No scattered light is visible during a star test, lunar or planetary observation, or when examining a bright light bulb directly through the objective.  The interior glass surfaces appear as if completely polished, and the objectives performed magnificently.

But Busch offered still more.  One of the most formidable obstacles to amateur construction of refractors is certainly the need for a carefully made lens cell.  But a complete cell in metal was offered as part of the kit.  Another obstacle is the need to "dewedge" the lens elements.  "Wedge" consists in the non-uniformity of thickness as one proceeds around the periphery of a lens.  In other words, at 12 o'clock (say) on the lens as you face it, you have a thickness of "x," whereas at 6 o'clock you have some other thickness.  Hence, the lens as a whole has a slight "wedge" component to its shape, rather like a prism.  This error, if left uncorrected, will stretch a star image into a short spectrum, just as a real prism will.  The spectrum is, of course, the aberration called "lateral color" which we studied in Chapter 2.

Normally an optician will grind away the wedge-error, but an ATM familiar only with mirror-making will not possess the know-how or have the proper equipment to measure and verify the result.  Hence, the ATM's objective lens may show lateral color.  But lateral color can also arise from decentration of the lens elements with respect to one another.  Busch overcame both these problems by making his KzFN2 element somewhat smaller in diameter than the B270 elements which surrounded it and by providing four plastic centering screws built into the lens cell.  The centering screws pressed lightly against the KzFN2 and allowed the user purposely to change its centration, thereby also changing the amount of lateral color produced by the objective.  This meant that even if the lens elements had some wedge, the user could compensate by adjusting the centration of the middle element.  Thus, the user could remove any lateral color, arising from fabrication errors, during use at the telescope.  Even more ingeniously, the user could compensate for atmospheric dispersion in stellar or planetary images by similarly adjusting the lens.  I have myself performed such adjustments on Busch objectives and they work perfectly.

Busch's HAB ["Halbapochromat Bausatz"] system was therefore extremely practical and really did put a high-quality half-apochromat within reach of a mirror maker, without the need for additional know-how or fabrication equipment.  The kit itself came with a set of excellent instructions by Busch, which I have seen courtesy of H.C. Schröder, an engineer in Germany who also supplied me with a detailed prescription for the 130mm f/15 objective, as well as with an engineering drawing and list of the kit's contents as supplied by Reichmann Precision Optics.  According to Reichmann, the kit contained the following:  3 lens elements, bevelled, edged round and curve generated; 1 lens cell, threaded with a retainer ring and black anodized; 4 plastic centering screws; 4 different glass filters for checking the color correction; 1 unit of special oil for contacting the lenses; grit, polishing compound and pitch; detailed working instructions; and 1 grinding tool for working the exterior lens surfaces.

The instructions from Busch told in some detail how to grind the interior lens surfaces together, as well as how to use the grinding tool on the outside surfaces, and when to stop.  The level of detail and various reminders are appropriate to the needs of someone who has successfully finished one or two paraboloidal mirrors.  Much more interesting, however, are the instructions concerning oiling, polishing, figuring, and testing.  Busch recommends using a slight amount of oil, just enough so that after a number of hours, the oil layer will finally expand to reach the outer edge of the lens.  No taping is required or indeed possible because of the centering screws.

After oiling, the assembled objective is inserted into its cell, and then polished and figured on its exterior surfaces.  The very valid reason for doing this is to avoid flexure of the lens elements, if they are polished individually on the usual grinding stand or machine.  This could introduce zonal errors or astigmatism, especially in the hands of an inexperienced lens maker.  With the whole objective assembled in the cell, the exterior lens surfaces become in effect far stiffer and more resistent to flexure since the exterior lenses rest on those below them.  The total stack up of glass is quite stiff and the oil layer (properly applied) is incompressible.

Now the one real difficulty with Busch's lens (a prescription for which will be given in a moment) is that it requires a somewhat aspheric exterior front surface.  But in a stroke of genius, Busch tells how to produce the required asphere almost automatically.  He describes how to cut a paper ring, place it between the first and second lenses resting on the oily layer between, and then how to polish the outer surface of the first lens with somewhat more force than usual.  Because the paper ring only the supports part of the front lens (its outer periphery), and leaves the rest (midsection) unsupported, more polishing action will occur over the ring and in its vacinity.  Less polishing will occur in proportion as one moves toward the center of the lens.  Thus gradually with persistence an oblate ellipsoidal surface will arise, which is exactly what is needed.

For testing, Busch suggests using the Foucault or Ronchi test with a slit source.  He outlines four test methods: autocollimation against a flat mirror; use of a Newtonian telescope to create a collimated beam feeding the objective under fabrication; use of a finished Fraunhofer achromat for the same purpose; and barring those methods, use of a bare slit placed at a large distance and nulling the objective for blue light.  All these methods should be valid, and armed with them the ATM has everything necessary to make a finished lens.  No wedge testing, no spherometry is necessary; one does not even need to polish four of the six surfaces!  It was a marvelous kit and a clever plan!  Alas, it was little known outside of Germany.  But certainly Wolfgang Busch's name and achievement deserve to be known by lovers of fine apochromatic lenses.  Perhaps never before had anyone marketed a refractor kit of any kind that was so wholly practical, so clearly and completely thought out and described.

A Busch-type lens may be formed as follows:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
1081.885
19
B270
160
0.449
2
Standard
-405.421
6
KzFN2
160
0
3
Standard
268.536
18
B270
160
0
4
Standard
Infinity
2220.457

160
0
5
Standard
Infinity
-0.064

39.407
0
Standard
-846.714


39.421
0

Table 4:  150mm f/15 "HAB"-Type Semi-Apochromat


The layout of the lens looks as follows:

Busch System 150mm f/15 Semi-apochromat
4. 150mm f/15 "HAB"-Type
Semi-Apochromat

The ray fans come next:

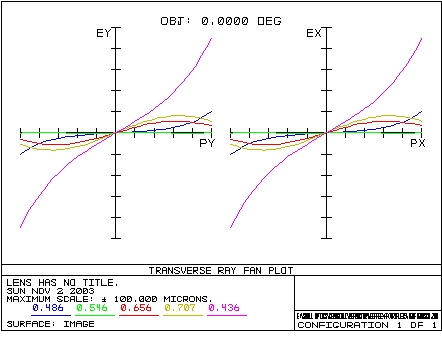

150mm f/15 Busch Rayfan
Figure 7:  Ray Fans for 150mm f/15
HAB"-Type Semi-Apochromat


And the spot diagrams, in which I have omitted deep red (0.707 micron) and violet (0.436 micron) in order to make the Airy disk more clearly visible:

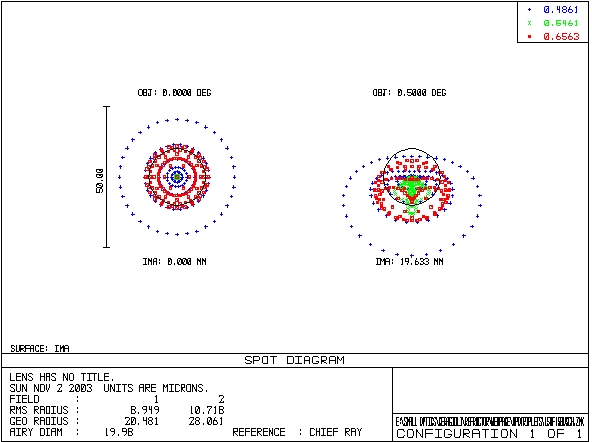

150mm f/15 Busch Spot Diagrams

Figure 8:  Spot Diagrams for 150mm f/15 "Busch System"-Type Triplet

Obviously, the performance is not as good as that given by the Taylor or Zeiss types of apochromats, but it is still respectable and far better than an achromat.  The red rays just fill the Airy disk, while the blue form a disk no more than twice as large.  Violet is not well controlled, but since it is so faint this hardly matters for visual observing.  There is a small amount of coma, but its magnitude is trivial and could not be seen in practice.  Overall, the Busch objective has achieved an outstanding balance between performance and practicality.  The kits are no longer available, and KzFN2 has gone out of production.  But similar and better corrected lenses can be formed from KzFSN4 and the ED glasses.

After Busch came Roland Christen in the early 1980s who revolutionized amateur interest in high-performance lenses [cf. R. Christen, "An Apochromatic Triplet Objective," Sky and Telescope (Oct., 1981), pp. 376-380; "Revised Triplet Design," Sky and Telescope (April, 1982), pp. 411-412; and "Design and Construction of a Super Planetary Telescope Objective," Telescope Making 28 (Fall, 1986), pp. 20-23].  Christen's original lens designs were essentially oil-spaced versions of Taylor's, using three different glass types to achieve better color correction.  Like Busch, Christen noted in his published articles that the oiled interior surfaces of such lenses need not be figured accurately, since they contribute essentially nothing to the wavefront errors [cf. Sky and Telescope (April, 1982), pp. 411-412].  Moreover, oiling makes the tilt and decenter problems of the old Cooke and Zeiss triplets completely disappear.  Thus it becomes comparatively easy to fabricate high-performance apochromats, especially in the small sizes popular today.

I myself have built a number of these short-flint, as well as ED oiled triplets and found them among the easiest optics to make accurately.  In many instances it was not necessary to do any figuring at all:  the lenses were complete as soon as they had been carefully polished out.  The first of these lenses, a 90mm f/12 short-flint triplet won a merit award for optical excellence at the 2002 RTMC Astronomy Expo; and the second, a 140mm f/12 ED triplet is equally good in color correction and figure.  Both have smooth wavefronts of 1/8th wave pv (at 532nm) or better.  Nothing more than the simplest lens cells has been necessary for either of the lenses.  More recently I have completed a 140mm f/9 ED triplet, like that shown in Table 7 below, and a 175mm f/12 ED triplet of a different design.  All were comparatively easy to make and figure.

What follows is a short-flint triplet closely modeled on those published by Christen in the above-mentioned articles:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
1862.235
18
BK7
160
0
2
Standard
-365.407
6
KzFS1
160
0
3
Standard
365.407
18
BaFN10
160
0
4
Standard
-1342.645
1492.275

160
0
5
Standard
Infinity
0.023

26.241
0
Standard
-582.177


26.251
0

Table 5:  150mm f/10 KzFS1 Oil-Spaced Triplet


Christen 1 Layout
5.  150mm f/10 KzFS1 Oil-Spaced Triplet

This is an elegant symmetrical design, much faster in focal ratio than any of the preceding lenses.  It proved possible to increase the speed because the design uses a short-flint (KzFS1) of more abnormal dispersion than those seen above.  Indeed, Christen stated at the time he was building his first lenses that his batch of KzFS1 was even better in its partial dispersions than the catalog values [cf. Sky and Telescope (Oct., 1981), p. 378].  So, the ray fan plots and spot diagrams given below are no doubt worse than what he actually achieved.  Yet they give an idea of the excellence of the corrections:

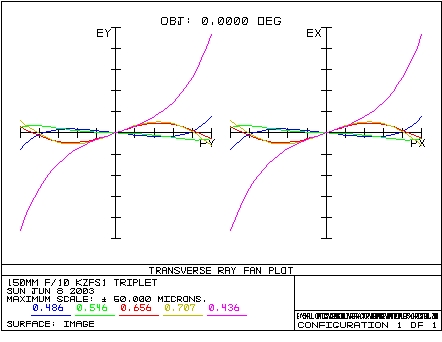

Christen Ray Fan Plot
Figure 9:  Axial Ray Fan Plots for a 150mm f/10 KzFS1 Oil-Spaced Triplet


Spot Diagrams for "Christen"-Type Triplet

Figure 10:  Spot Diagrams for a 150mm f/10 KzFS1 Oil-Spaced Triplet

This design is excellent for f/10 and can provide very satisfying views.  One must remember, of course, that the human eye has only a slight sensitivity to 0.436 micron, so that only a very faint violet halo would be visible around the brightest white stars in a dark sky.  Otherwise, even at high powers stars in this type of lens would look sharp and completely free of false color [cf. Christen, Telescope Making 28 (Fall, 1986), pp. 23].  The lens's chromatic focal shift diagram gives the classic flattened "S" shape of a short-flint triplet apochromat, comparable to the color curves published by Czapski, Wolf, Steinheil and others starting in the 1880s:

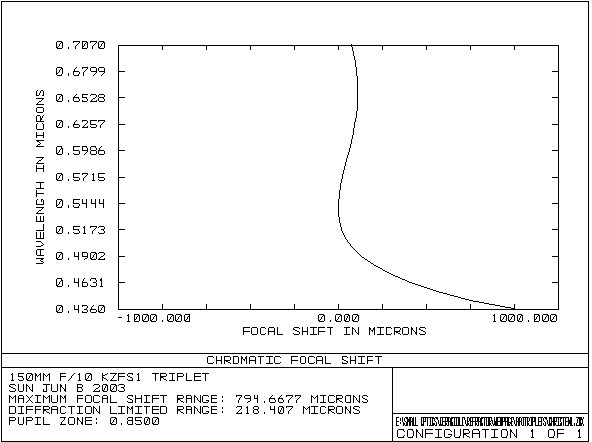

Chromatic Focal Shift for Christen-type Lens

Figure 11:  Chromatic Focal Shift for 150mm f/10 KzFS1 Oil-Spaced Triplet

Alas, KzFS1 is no longer made.  The related short flint, KzFSN4, on the other hand is a standard Schott glass.  It can be teamed with the slightly abnormal fluor-crown N-FK5 and the ordinary barium flint N-BaF51 to make an essentially identical type of triplet:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
2017.256
18
N-FK5
160
0
2
Standard
-341.788
5
KzFSN4
160
0
3
Standard
304.103
20
N-BaF51
160
0
4
Standard
-978.561
1496.236

160
0
5
Standard
Infinity
0.0745

26.262
0
Standard
-579.114


21.268
0

Table 6:  150mm f/10 KzFSN4 Oil-Spaced Triplet

The geometry of this lens is very similar to the KzFS1 triplet shown above.  Therefore I omit a layout.  The performance is as follows:

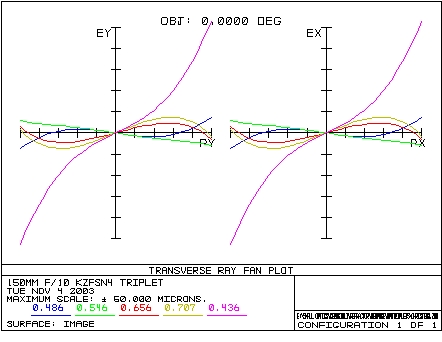

Ray Fan for KzFSN4 Oil-Spaced Triplet
Figure 12:  Ray Fan Plots for 150mm f/10 KzFSN4 Oil-Spaced Triplet

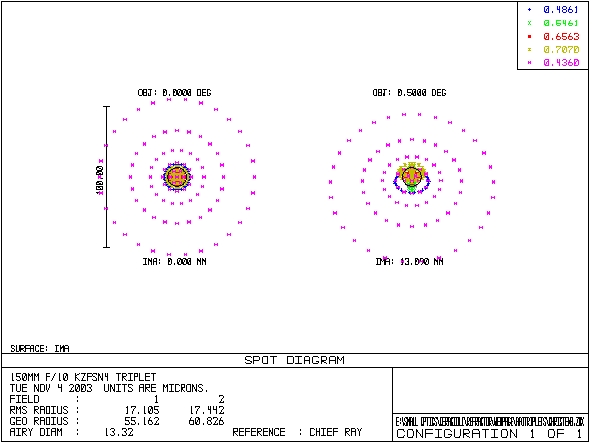

Spot Diagrams for KzFSN4 Oil-Spaced Triplet

Figure 13:  Spot Diagrams for 150mm f/10 KzFSN4 Oil-Spaced Triplet

The color residual is somewhat worse, though in practice one would probably see no difference between the present lens and the preceding.

These two oil-spaced lenses represent the approximate limit of what can be achieved with a safe oil-spaced short-flint design.  One must understand that many of the short-flints are sensitive to water and will be etched by it, if it is allowed to stand on their surfaces for more than a few minutes.  Even long-term exposure to atmospheric humidity may degrade them.  Therefore, sealing these glasses inside a layer of oil is a good conservation measure.  Anti-reflection coatings can also help, and if they are used, it is indeed possible to add airspaces between the three lens elements and vary all six radii of curvature, in order to improve the spherochromatism and basic color correction.  But then we may again encounter the centration problems of the old Zeiss B and Taylor objectives.  Therefore, it is probably not useful to push the short-flint design any further.

A better plan is to switch to an oil-spaced fluor-crown triplet, as commercial telescope makers have done.   By employing Ohara FPL53 in combination with ZKN7 we can decrease the focal ratio to f/9 as follows:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
580.789
10
ZKN7
160
0
2
Standard
304.444
20
FPL53
160
0
3
Standard
-688.687
10
ZKN7
160
0
4
Standard
-2590.862
1325.095

160
0
5
Standard
Infinity
-.063

23.601
0
Standard
-499.454


23.575
0

Table 7:  150mm f/9 ZKN7/FPL53/ZKN7
Oil-Spaced Triplet Apochromat

It will be seen here that (as in the Busch objective) we have a sandwich construction:  the central element of FPL53 is surrounded by two elements of ZKN7.  This is a very effective arrangement leading to smaller spherochromatism than we saw in the doublet made of these two glasses in Chapter 4a (cf. Table 9), and more importantly to a far easier construction.  Since the two interior spaces are filled with oil, the four interior lens surfaces cannot readily distort the wavefront.  Figuring this lens is now relatively easy.

The layout is as follows:

Layout for FPL53/ZKN7 Triplet
6.  150mm f/9 ZKN7/FPL53/
ZKN7 Oil-Spaced Triplet Apochromat


The ray fan plot and spot diagrams come next:

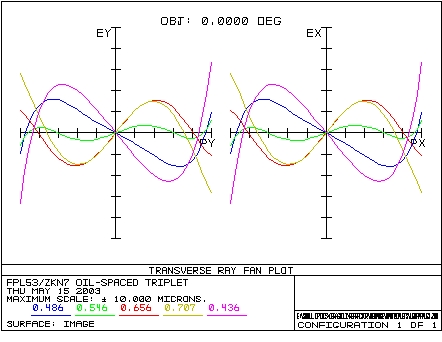

Ray Fan for FPL53 f/9 Lens
Figure 14:  Axial Ray Fan Plot for 150mm f/9 ZKN7/FPL53/ZKN7
Oil-Spaced Triplet Apochromat

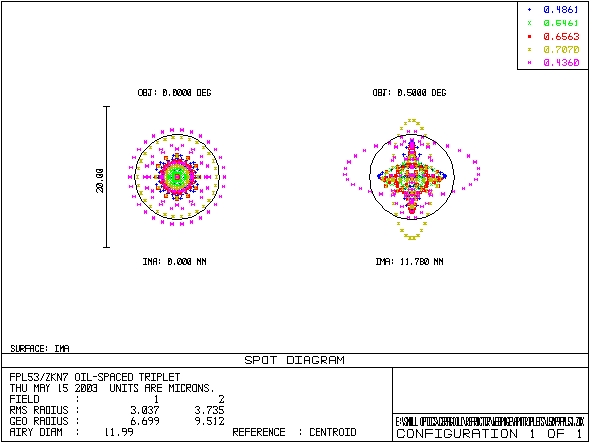

Spot Diagrams for FPL53 f/9 Lens

Figure 15:  Spot Diagrams for 150mm f/9 ZKN7/FPL53/ZKN7
Oil-Spaced Triplet Apochromat


The color correction is excellent and the spherochromatism is under control.  The small 5th order residual of spherical aberration seen in green light is of little significance.  An examination of the chromatic focal shift diagram shows a notable improvement over that for a short-flint design:

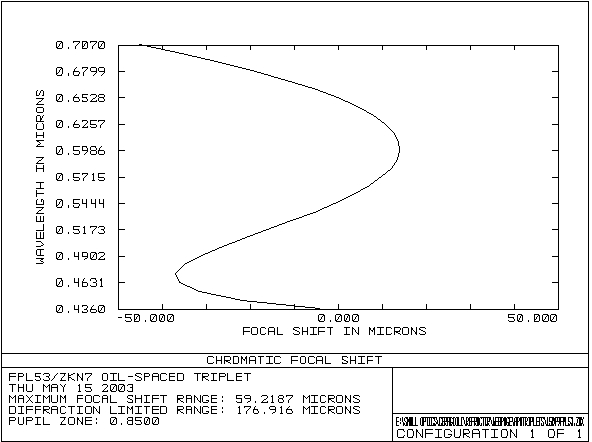

Chromatic Focal Shift Diagram for FPL53 Lens

Figure 16:  Chromatic Focal Shift Diagram for 150mm f/9 ZKN7/FPL53/ZKN7 Triplet

Comparing the maximum focal shift to the diffraction limited range shows for the first time that former is now much smaller than the latter, which is another sign that our lens possesses excellent color correction.  Many vertical slices through the graph will intersect three widely separated wavelengths of light.  Figure 15 shows excellent correction for coma, only a small amount of chromatic astigmatism being clearly displayed.  While Figure 14 shows good spherical correction for the e-line.  Thus, here we have achieved an excellent practical lens worthy of the name apochromatic.

I have built a 140mm f/9 version of the above lens and it performs admirably.  Only the merest hint of color can be seen in the Fresnel rings as you rack through focus, even when observing Vega.  At focus, the Airy disk and ring system look absolutely free of false color.

It is, of course, also possible to use fluorite for the abnormal dispersion middle element, as was done in the recent Zeiss APQ objective, built at 100mm aperture and 1000mm focal length (f/10).  Such a lens would no doubt give superb results [cf. A. Karnapp & J. Pudenz, "The 100/1000mm APQ objective--a new level of quality in astronomical optics," Jenaer Rundschau 31.3 (1986), pp. 140-141; and U. Laux, Astrooptik , 2nd ed. ( Sterne und Weltraum , 1999), pp. 51-53].

Now, if one must push for still faster focal ratios, then it is possible to use the oiled combination of ZKN7 and FPL53 down to about f/7 in a 150mm diameter lens or f/6 in a 125mm lens.  Color correction remains acceptable.  Below f/7 or f/6, spherochromatism will degrade the performance so that color will reappear in the image.  Certainly the one commercial 125mm f/6 ED triplet which I have closely examined, showed signs of being near the limit.  At focus no outstanding color was seen; but on racking through focus plenty of color was evident in the Frenel rings, showing the barely contained spherochromatism at work.  So here lies a fundamental limit in oil-spaced triplet design.  The residual 5th order spherical aberration component best seen in green light will also grow, although with suitable aspheric figuring that could be removed.

In all these designs, we could easily break the oil-bonds by specifying one or more airspaces, thereby allowing us to vary all six radii of curvature in order to diminish the spherochromatism and 5th order spherical aberration residual, which are the outstanding aberrations of fast apochromats.  Yet, this could rapidly lead to systems very difficult to build, like theTaylor and Zeiss B objectives, needing temperature compensated cells.

Another way to improve the performance of fast apos is by adding a fourth lens element [cf. U. Laux, Astrooptik , 2nd ed. (Sterne und Weltraum, 1999), p. 47].  Combined with one narrow airgap, this easily results in greatly improved performance.  The following is a such design for a 150mm f/7 four-element apochromat:

Surface
Type
Radius
Thickness
Glass
Diameter
Conic
Object
Standard
Infinity
Infinity

0
0
Stop
Standard
433.00
8
BK7
160
0
2
Standard
226.55
27
FPL53
160
0
3
Standard
-460.68
0.042

160
0
4
Standard
-474.59
12
F2
160
0
5
Standard
-245.25
10
BaF4
160
0
6
Standard
-1507.04
1018.98

160
0
7
Standard
Infinity
-0.056

18.356
0
Standard
-391.08


18.329
0

Table 8:  150mm f/7 FPL53 Four-element Apochromat


The layout for this lens is as follows:
Layout
7. 150mm f/7 Four-
Element Apochromat

The lens can be thought of as a Fraunhofer-type objective with crown and flint elements both composites of two lenses each.  By forming each composite element from two different glasses, it is easily possible to fine tune the partial dispersions which results in almost no outstanding color.  Moreover, spherochromatism can be almost completely abolished.

The performance is as follows:

Ray Fan Plot for 150mm f/7 Four-element Apochromat
Figure 17:  Ray Fan Plots for 150mm f/7 Four-element Apochromat

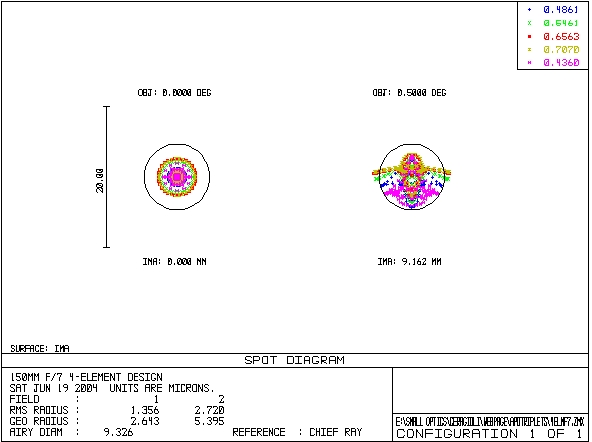

Ray Fan Plot for 4-Element f/7 Design
Figure 18:  Spot Diagrams for 150mm f/7 Four-element Apochromat

These are the best spot diagrams we have seen so far.  Even down to a wavelength of 1.000 micron (not illustrated) the color blurs stay much smaller than the Airy disk.  The ray fan plot shows only a small spherochromatism.  The 5th order spherical residual common to all the wavelengths could be removed through figuring.  The main problem with this lens is its great thickness (57mm), which will slow down thermal equilibration and promote spherical aberration.  Whether that would create a problem in practice, I cannot say.

That concludes our survey of apochromatic lenses.  Several special refinements will be found in the last two chapters.   In Chapter 5 we will examine the so-called "Petzval" telescope and sub-aperture color correctors.  In Chapter 6 we look at two completely different forms of refractor:  Ludwig Schumann's "Medial" and "Brachymedial" telescopes.  Then in Chapter 7 we will look at practical ways to achieve larger apertures by relaxing demands for perfect color correction.
